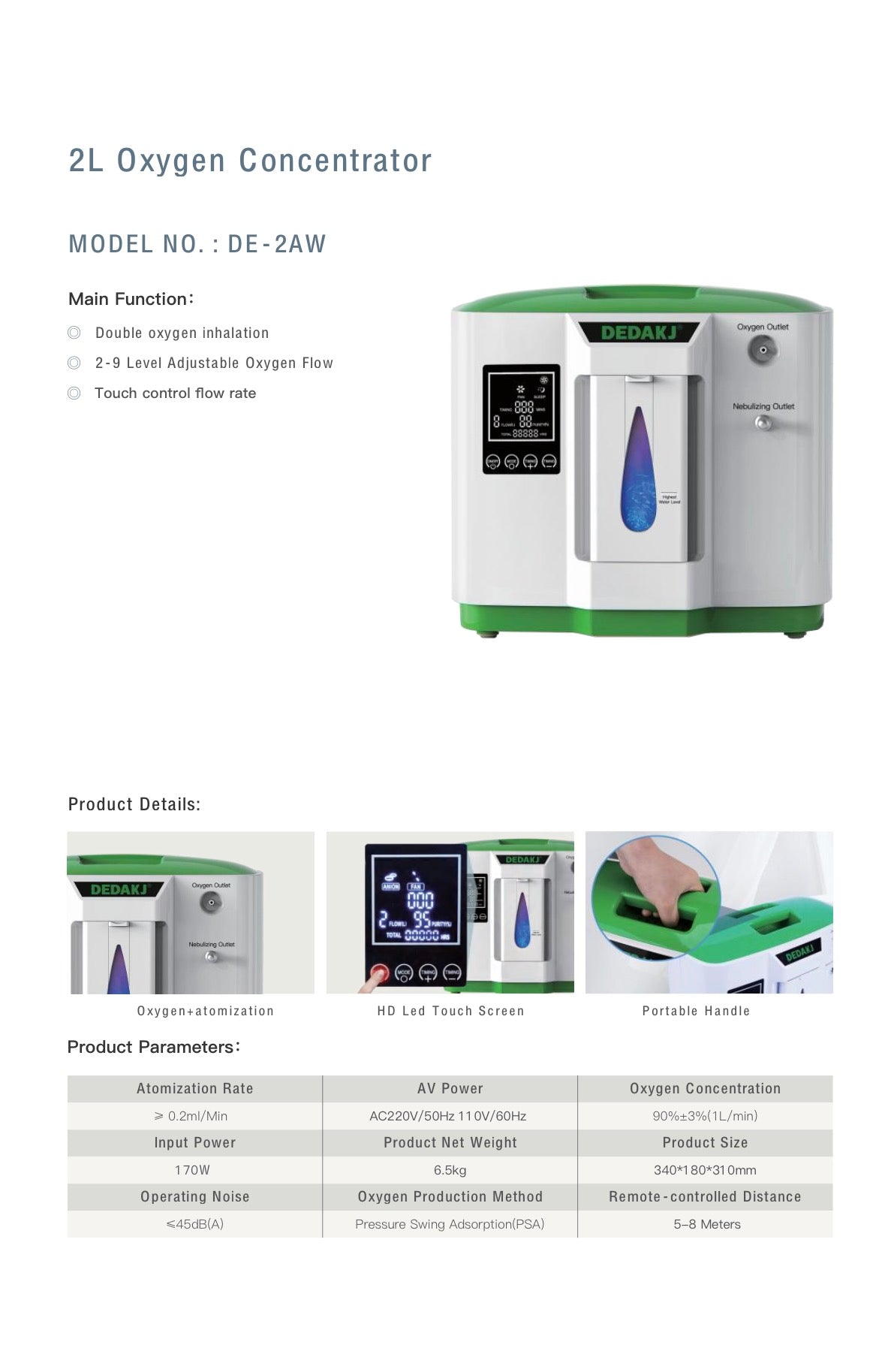

DE-2AW
Oxygen concentration: 30%-90%(±3%)
Display control: HD LCD touch screen
Rated voltage: AC220 ± 22V (or 110V)
Control distance: 8 meters infrared remote
control
Net weight: 6.5kg
Operating noise: ≤45dB(A)
Oxygen generation method: Pressure Swing
Adsorption(PSA)
Size: 340×180×310mm
Inhalation method: Nose suction (nasal cannula)
Oxygen output: 2L-9L adjustable
Max Oxygen flow rate: 9L/min
Max oxygen concentration: 93%
Input power: 170VA
1. Pre-set time function: longest time 180
minutes
2. Sleep mode
3. Automatic power-off protection (double
insurance)
4. Infrared remote control function
5. Oxygen output accumulative time
function
6. Car support (Need transferor as extra)
7. Nebulizer function
8. Oxygen for 2 people (Need T tube as
extra)
9. Touch screen key function
10. Intelligent failure alarm
11. Oxygen concentration real-
time monitoring function

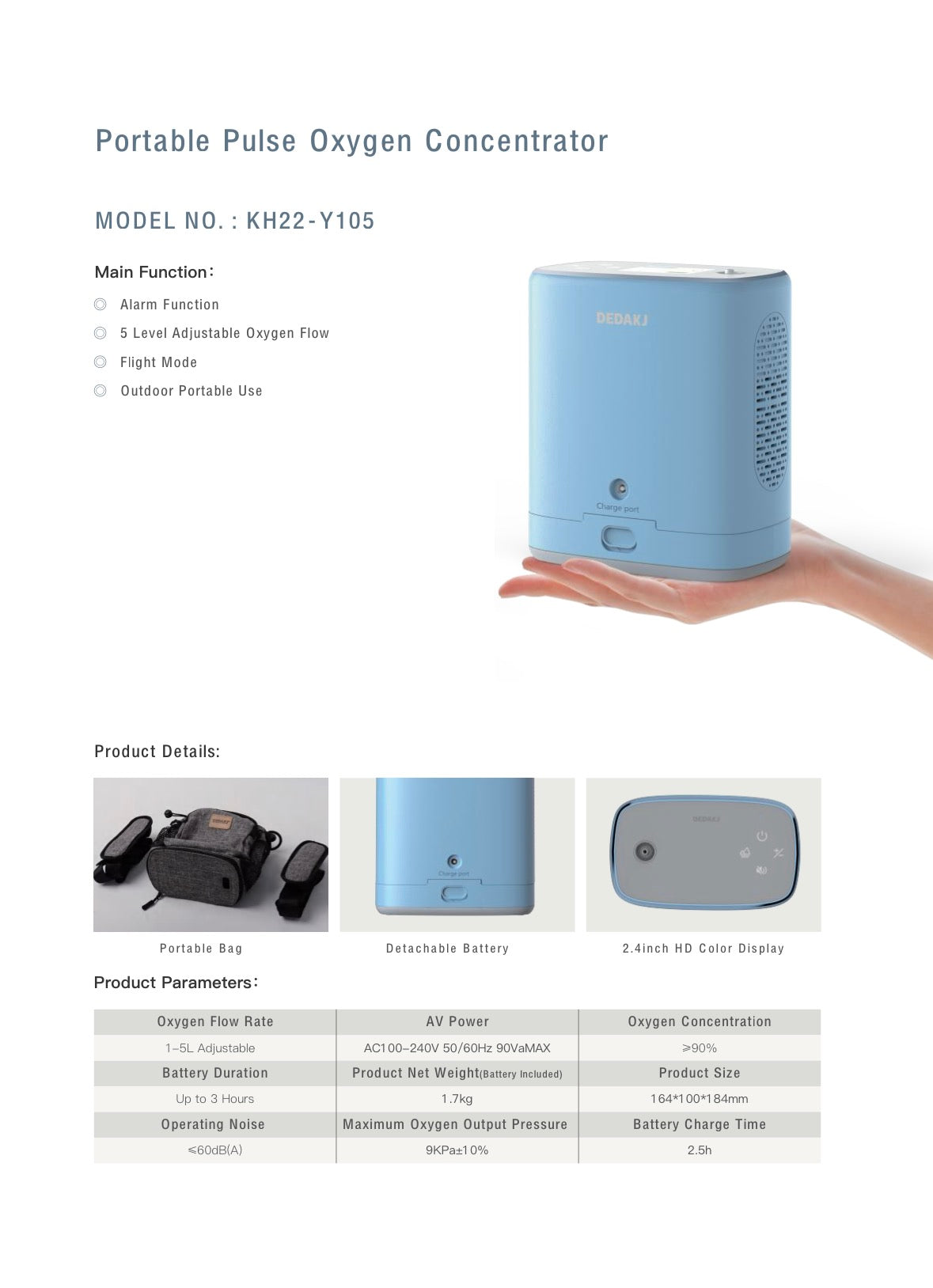

KH22-Y105

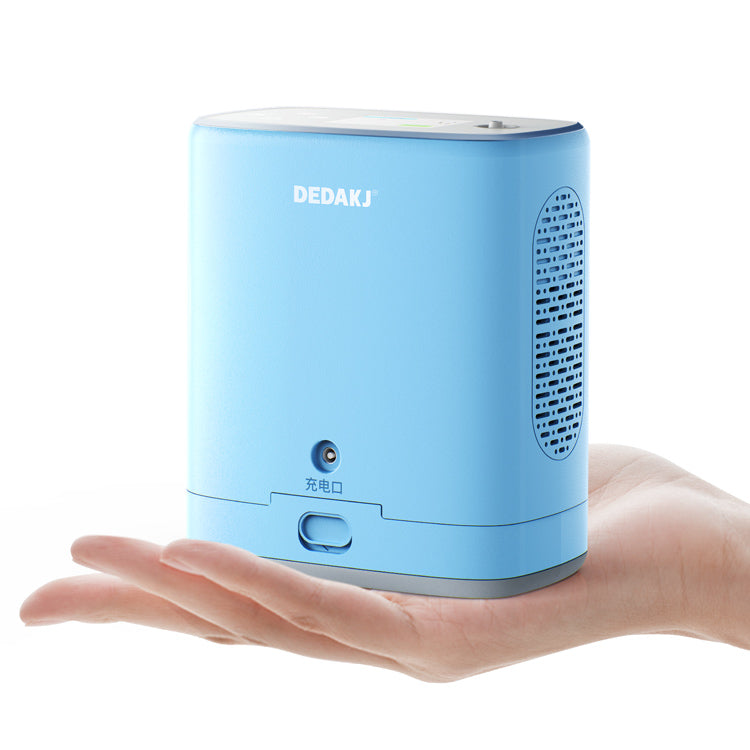

Name: Portable Pulse Oxygen Concentrator

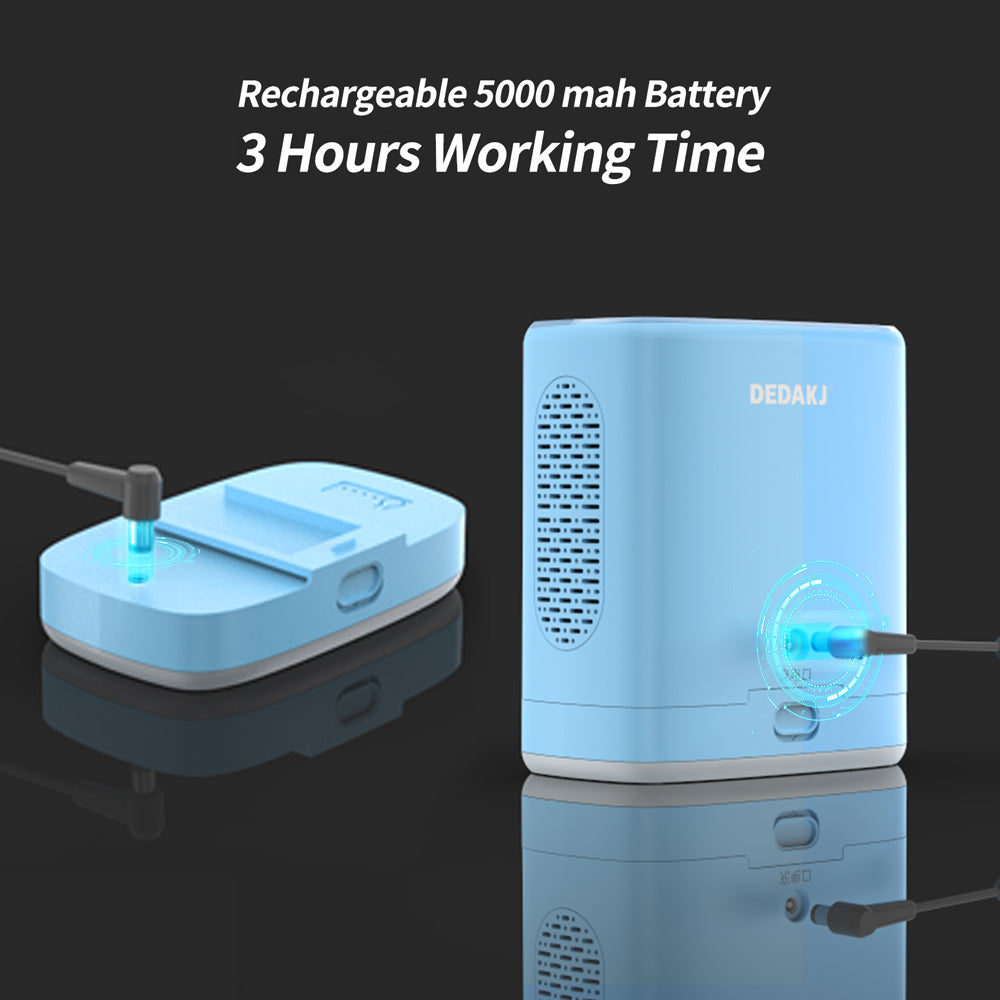

Battery Duration: Up To 3 Hours
Battery charge time: 2.5 h
AC power: AC100-240V 50/60Hz 90VA MAX
Capacity: 5000mAh
Product net weight (battery included): 1.7kg

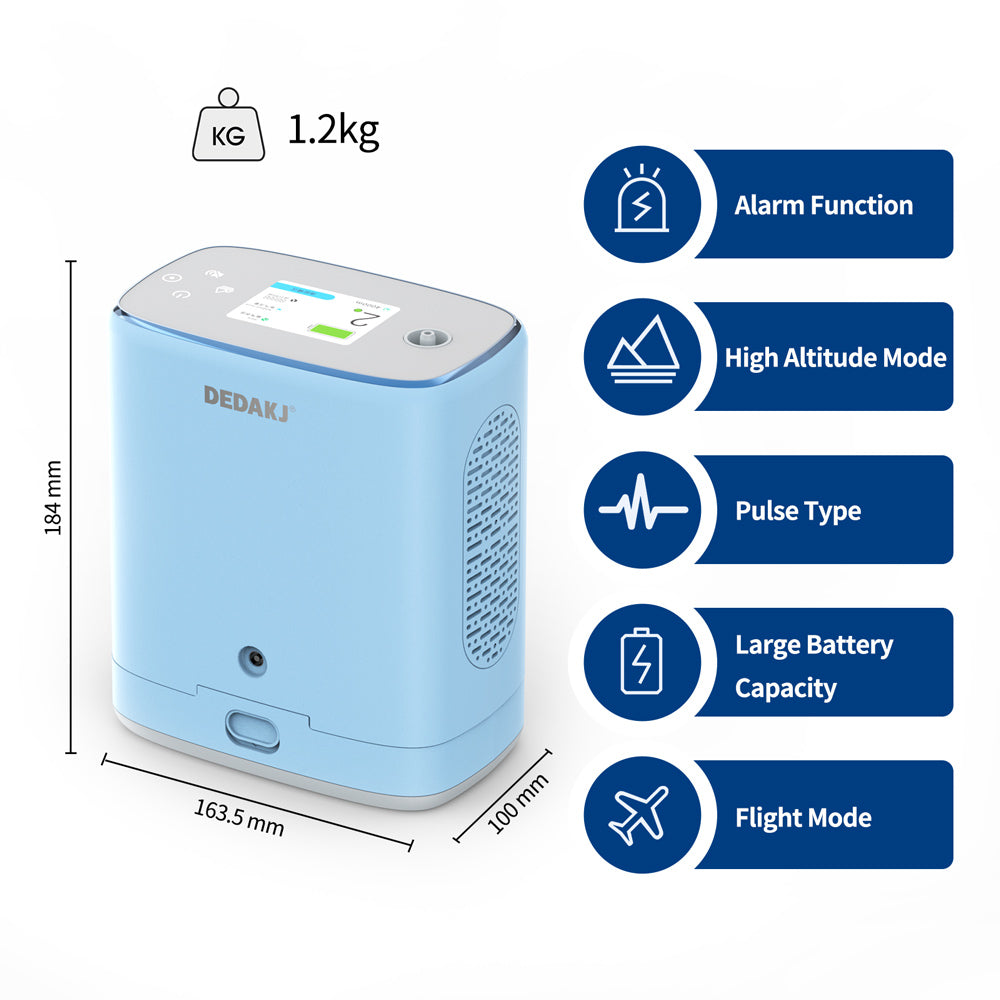

Product size: 164*100*184MM
Oxygen concentration: ≥90%
Operating Noise: ≤60db (A)
Maximum oxygen outlet pressure: 90KPa±10%
1. 2.4-Inch HD color display
2. 5-level adjustable oxygen flow
3. Simple button control
4. Outdoor portable use
5. High altitute mode
6. Flight model
